Specifications

Model: D-Moll
Output: 100 Watt, 4xKT77 (JJ)
Channels: 2.5 - first channel from clean to mild crunch, second from mild crunch to meaty crunch, third (shares eq with 2nd) with insane amounts of gain
Loops: 2, series and parallel; both sends are midi switchable
Equalization: 1st channel: Gain Volume, Treble, Mids, Bass 2nd channel: Gain Volume, Treble, Mids, Bass 3rd channel: Gain, Volume
Preamp: 6 highgrade ECC83/12AX7. The amp offers three preamps (clean, crunch, insane) with 2 EQs, additionally a (midi switchable) mid cut and also midi switchable loops (series and parallel)
Poweramp: 2 midi switchable Master Volumes. Compensated (recording) out (load needed) and a Columbús Out.
Dimensions: 29.25" length x 11" wide x 10.75" height
Weight: 54 lbs

D-MOLL

100-WATT
2.5 CHANNEL TUBE HEAD – MIDI CONTROL;
MADE IN GERMANY

$3,099.00
100-WATT
2.5 CHANNEL TUBE HEAD – MIDI CONTROL;
MADE IN GERMANY

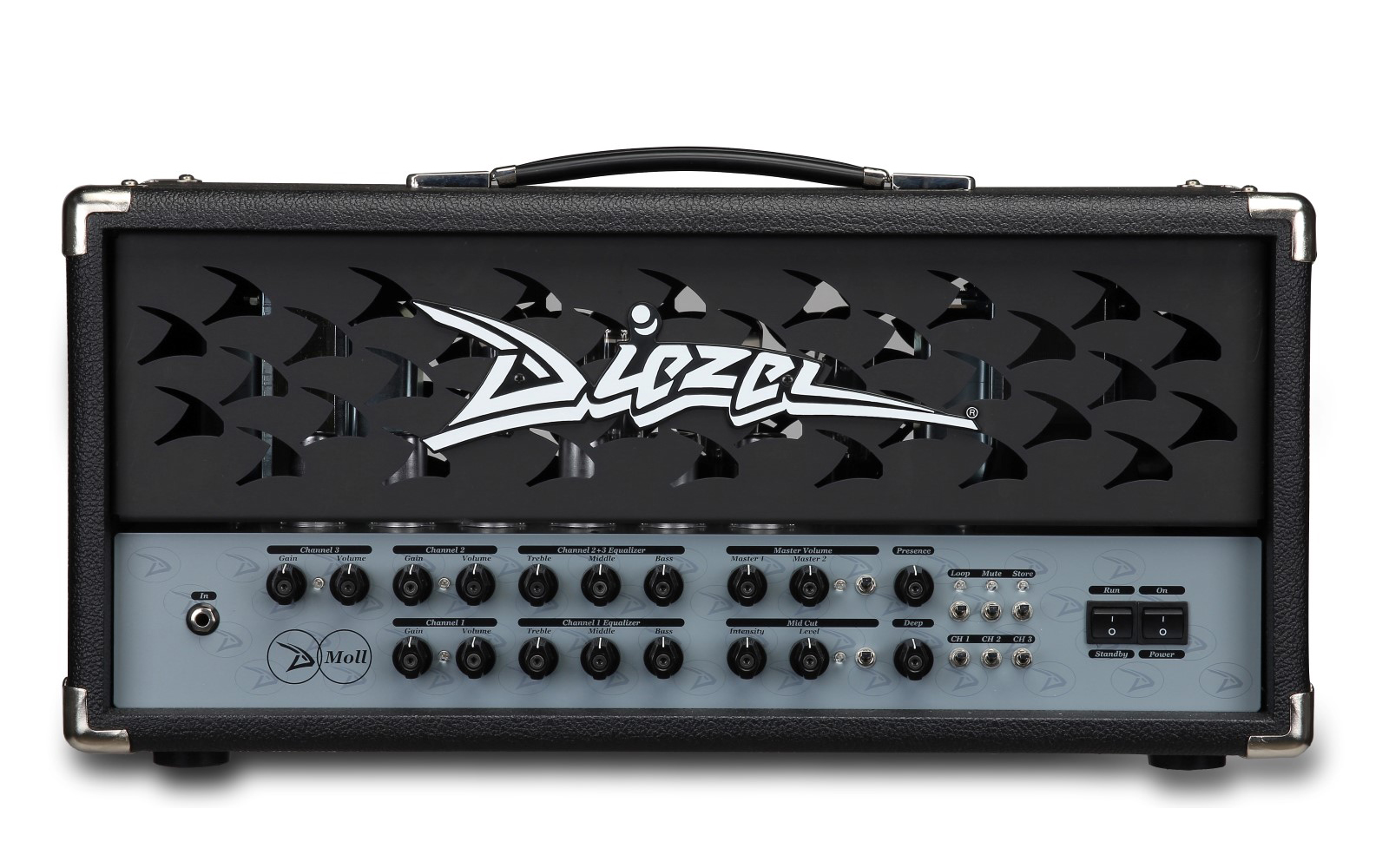

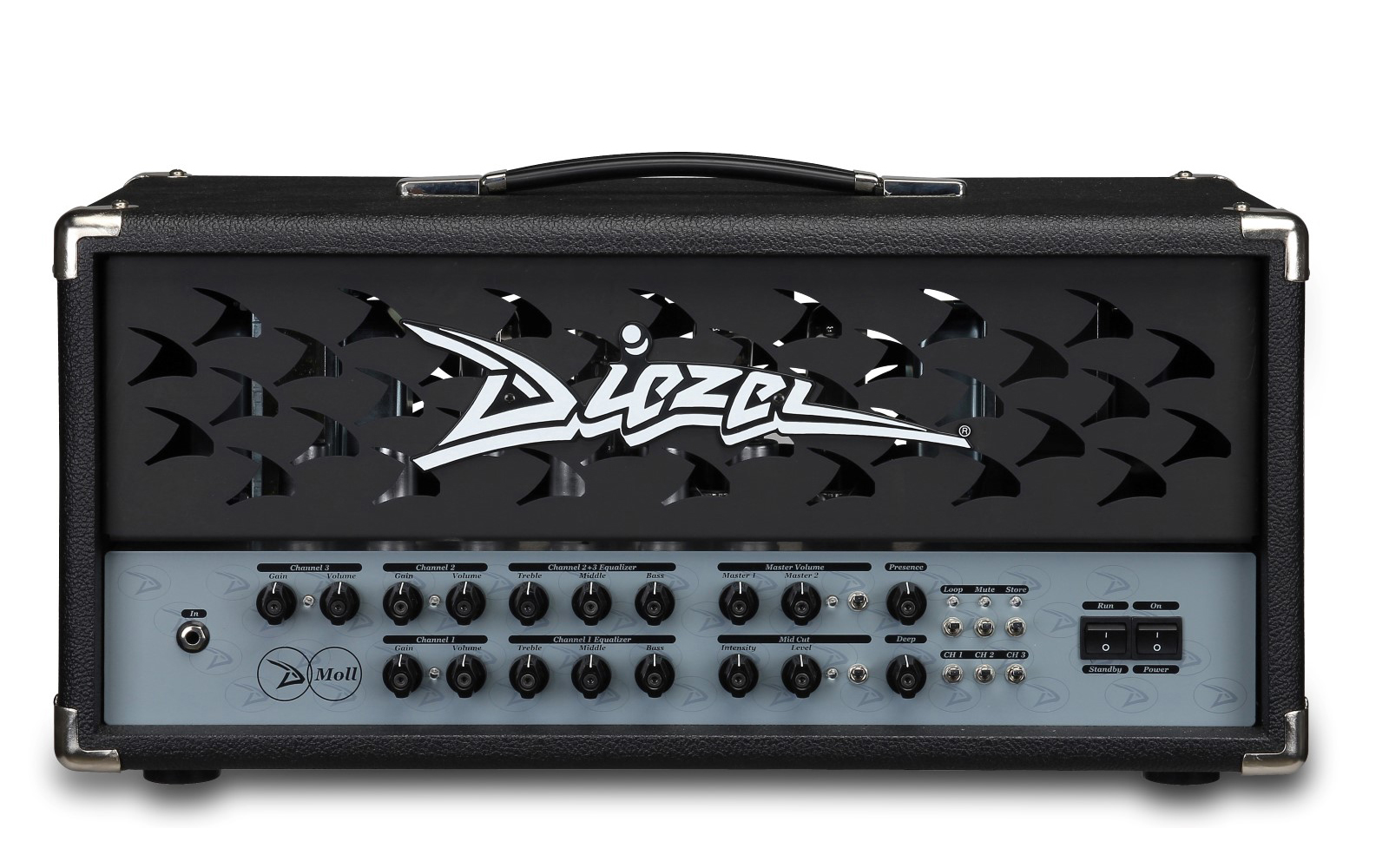

The Diezel D-Moll is a muscular 100-watt head that delivers sparkling cleans to blistering dirty sounds from a quad of JJ KT-77 output tubes and six 12AX7 preamp tubes. Features include three midi-switchable preamp sections ("clean","crunch" and "insane"), a MIDI-controllable "Mid-Cu" MIDI-controlled FX loops (series and parallel) and much more.

The classic Diezel tone is present and accounted for. The D-MOLL reacts fast to the touch, but with a smooth, even touch. Its exceptional dynamic response lets your guitar broadcast its true personality with clarity and “air.” Diezel amps are revered for their expansive, “open” character that allows the player to explore a myriad of musical sounds and styles. Make no mistake – this is not a “faceless” amp – it’s simply capable of stunningly versatile performance.

The “Clean” channel (channel 1) is crystal clean for most of its range, but offers just a bit of compression and overdrive when the gain control is maxed. This is a huge, sparkly-yet- warm-sounding clean channel, at home comping jazz chords or squeezing out funk rhythms.

The crunch channel (channel 2) has a natural, robust quality – think Texas blues to heavy rock rhythm to smooth medium-to- high gain solo sounds.

The “Insane” channel (channel 3) starts at a heavy saturated rhythm sound to fully-realized blazing lead tones. Nice and creamy when you roll back the guitars tone knob a little, but brutal when you crank it all the way up.

The D-Moll boasts a selectable Mid-Cut feature, sweeping from full mid bite to dark scoop. The Mid Cut feature has a level control that allows the player to bump or reduce the volume as needed. The D-Moll's master section features dual Volume controls, a global Presence knob and a “Deep” control, which offers to boost the low frequencies at 90 Hz.

Store switches, loop and mute patches simply by hitting the store switch. If you want to expand your rig, Herbert has two different series loops. Use the switchable loop to add channels with an outboard preamp. Use the non-switchable with your preferred FX unit. If you need to tune while gigging, simply set a patch muted with midi.

With extensive MIDI control built in, the D-Moll does not come with a foot switch, as players have wide switching options. Optional: The Diezel Columbus Midi Switcher and the FS7HE ; search under 'Accessories'.
